Gabion Retaining Wall Sketch, Frontiers Seismic Behavior Of One Storey Gabion Box Walls Buildings Built Environment - The width of each course reduces as the wall height increases.. The width of each course reduces as the wall height increases. The zeb pilot house in norway is a good example incorporating gabion stone cages in home design where they are used to build both interior and exterior walls. Please email us, your requirements, and we will get back to you with costings for the kitset gabions, needed to build your gabion wall or fence. 10.all gabion panel intersections are to be laced with wire matching the gabion mesh. The standard design for a gabion wall is a pyramid.

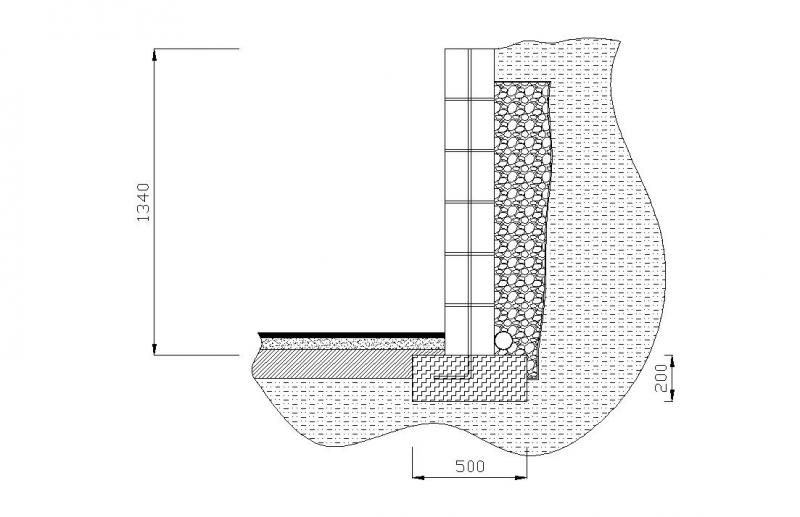

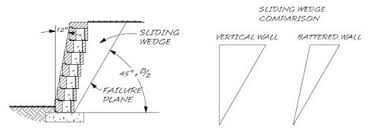

The main forces acting on the wall are lateral earth pressure at the back face and vertical forces which is the weight of the wall as shown in figure 4, the latter force is employed to resist the. Typical wall configurations accessible by public 8. Gabion retaining walls are extensively used in civil construction, architecture, and landscaping. Please email us, your requirements, and we will get back to you with costings for the kitset gabions, needed to build your gabion wall or fence. Wire to match gabion mesh.

Astmoor Runcorn Gabion Retaning Wall Enviromesh from i1.wp.com

Gabion basket, garden patio cage outdoor gabion planter gabion raised bed galvanized steel 106.3x11.8x23.6 4.0 out of 5 stars 1. However, 6° or 10° from the vertical can be designed for 3.8mm, 4mm or 5mm wire diameters. This tutorial offers 5 steps on how to build a gabion wall, especially handy tips for starting your first gabion project. Our gabion walls are designed to last since they're flexible and are able to move with the earth. The zeb pilot house in norway is a good example incorporating gabion stone cages in home design where they are used to build both interior and exterior walls. When constructing gabion retaining walls in strongly acidic soils (ph over 5.5), the soil and the corrosive groundwater must be separated from the gabion structure by using geotextile fabrics and a properly designed drainage system. The width of each course reduces as the wall height increases. Gabion wall is designed in the same way as gravity retaining wall.

Gabion baskets full of spectacular looking rock filling is a growing trend in australia as a new approach to dealing with a retaining wall.

Ever used the term gabion wall? The standard design for a gabion wall is a pyramid. 10.all gabion panel intersections are to be laced with wire matching the gabion mesh. Gabion retaining walls are extensively used in civil construction, architecture, and landscaping. This tutorial offers 5 steps on how to build a gabion wall, especially handy tips for starting your first gabion project. Gabion walls are highly permeable and are able to bleed off any hydrostatic pressure, eliminating the need to install a drainage system. The width of each course reduces as the wall height increases. This one is on gabi. Exposed to traffic impacts, appropriate impact barriers are where they are to be used on the upslope sections and are 7. Gabion1 has over 10,000 different gabion sizes. Gabion walls design guide gravity wall design gabion walls are generally analyzed as gravity retaining walls, that is, walls which use their own weight to resist the lateral earth pressures. Sounds a little strange but it's basically just the marriage between rocks and wire. In general, for every 1m increase in wall height, the bottom row basket depth should be increased by half a metre.

Units of gabion wall are considered as one cohesive mass for design purposes. When constructing gabion retaining walls in strongly acidic soils (ph over 5.5), the soil and the corrosive groundwater must be separated from the gabion structure by using geotextile fabrics and a properly designed drainage system. See more ideas about gabion wall, landscape design, hardscape. For advice or assistance with the design of an economical gabion wall, please email our engineer@gabion1.com. Ever used the term gabion wall?

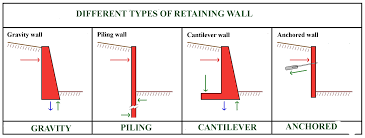

Retaining Wall Stock Illustrations 209 Retaining Wall Stock Illustrations Vectors Clipart Dreamstime from thumbs.dreamstime.com

In general, for every 1m increase in wall height, the bottom row basket depth should be increased by half a metre. Our gabion walls are designed to last since they're flexible and are able to move with the earth. However, 6° or 10° from the vertical can be designed for 3.8mm, 4mm or 5mm wire diameters. For advice or assistance with the design of an economical gabion wall, please email our engineer@gabion1.com.au. 10.all gabion panel intersections are to be laced with wire matching the gabion mesh. The main forces acting on the wall are lateral earth pressure at the back face and vertical forces which is the weight of the wall as shown in figure 4, the latter force is employed to resist the. Gabion retaining walls are extensively used in civil construction, architecture, and landscaping. Client supplied sketch gabion1 3d drawing gabion1 will supply you with a list of the kitset gabions needed to build your wall and an estimate of the rockfill you will need.

Gabions are a great way to construct retaining walls, garden beds, rock wall features, seating and numerous other landscape features.

11.internal bracing wires are to be provided to exposed faces. The problem of inadequate drainage behind retaining walls is often a source of major wall failure. Mass gravity gabion retaining walls are typically inclined at 6° from the vertical for 2.7mm or 3mm wire diameters to improve the stability. In general, for every 1m increase in wall height, the bottom row basket depth should be increased by half a metre. Gabion wall is designed in the same way as gravity retaining wall. Gabion walls are highly permeable and are able to bleed off any hydrostatic pressure, eliminating the need to install a drainage system. For advice or assistance with the design of an economical gabion wall, please email our engineer@gabion1.com.au. Sounds a little strange but it's basically just the marriage between rocks and wire. This tutorial offers 5 steps on how to build a gabion wall, especially handy tips for starting your first gabion project. Studying a design sketch of the wall. Wire to be provided at 1/3 and 2/3 gabion height for 1.0m high gabions and 1/2 height for 0.5m high gabions. Gabion walls design guide gravity wall design gabion walls are generally analyzed as gravity retaining walls, that is, walls which use their own weight to resist the lateral earth pressures. Jetzt gabion angebote durchstöbern & online kaufen.

The problem of inadequate drainage behind retaining walls is often a source of major wall failure. Email us a sketch and dimensions, we will email you back a 3d layout for approval and costing. The term gabion comes from an italian word gabbione which simply means big cage gabions can be made into square boxes, curved walls, pillars and more. 10.all gabion panel intersections are to be laced with wire matching the gabion mesh. 11.internal bracing wires are to be provided to exposed faces.

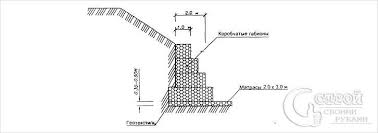

Retaining Wall Design Design Examples And Construction Gabion1 Uk from www.gabion1.co.uk

This gabion landscaping wall is different from gabion retaining wall, which is mainly used for construction projects. However, 6° or 10° from the vertical can be designed for 3.8mm, 4mm or 5mm wire diameters. Gabion baskets full of spectacular looking rock filling is a growing trend in australia as a new approach to dealing with a retaining wall. Studying a design sketch of the wall. When constructing gabion retaining walls in strongly acidic soils (ph over 5.5), the soil and the corrosive groundwater must be separated from the gabion structure by using geotextile fabrics and a properly designed drainage system. They can be more cost effective and easier to install than traditional sleepers but less cumbersome and difficult to manoeuvre than concrete or sandstone blocks. When constructing gabion retaining walls in strongly acidic soils (ph over 5.5), the soil and the corrosive groundwater must be separated from the gabion structure by using geotextile fabrics and a properly designed drainage system. Please email us, your requirements, and we will get back to you with costings for the kitset gabions, needed to build your gabion wall or fence.

This tutorial offers 5 steps on how to build a gabion wall, especially handy tips for starting your first gabion project.

However, 6° or 10° from the vertical can be designed for 3.8mm, 4mm or 5mm wire diameters. Gabion retaining walls are extensively used in civil construction, architecture, and landscaping. Jetzt gabion angebote durchstöbern & online kaufen. When constructing gabion retaining walls in strongly acidic soils (ph over 5.5), the soil and the corrosive groundwater must be separated from the gabion structure by using geotextile fabrics and a properly designed drainage system. Typical wall configurations accessible by public 8. That may be associated with traditional retaining structures or scour structures. Gabion basket, garden patio cage outdoor gabion planter gabion raised bed galvanized steel 106.3x11.8x23.6 4.0 out of 5 stars 1. Unlike a traditional concrete wall, gabion walls are. See more ideas about gabion retaining wall, gabion wall, retaining wall. This gabion landscaping wall is different from gabion retaining wall, which is mainly used for construction projects. Ever used the term gabion wall? Wire to be provided at 1/3 and 2/3 gabion height for 1.0m high gabions and 1/2 height for 0.5m high gabions. Our gabion walls are designed to last since they're flexible and are able to move with the earth.

Wire to be provided at 1/3 and 2/3 gabion height for 10m high gabions and 1/2 height for 05m high gabions gabion retaining wall. This gabion landscaping wall is different from gabion retaining wall, which is mainly used for construction projects.
